LED Van & Car Mounted VMS

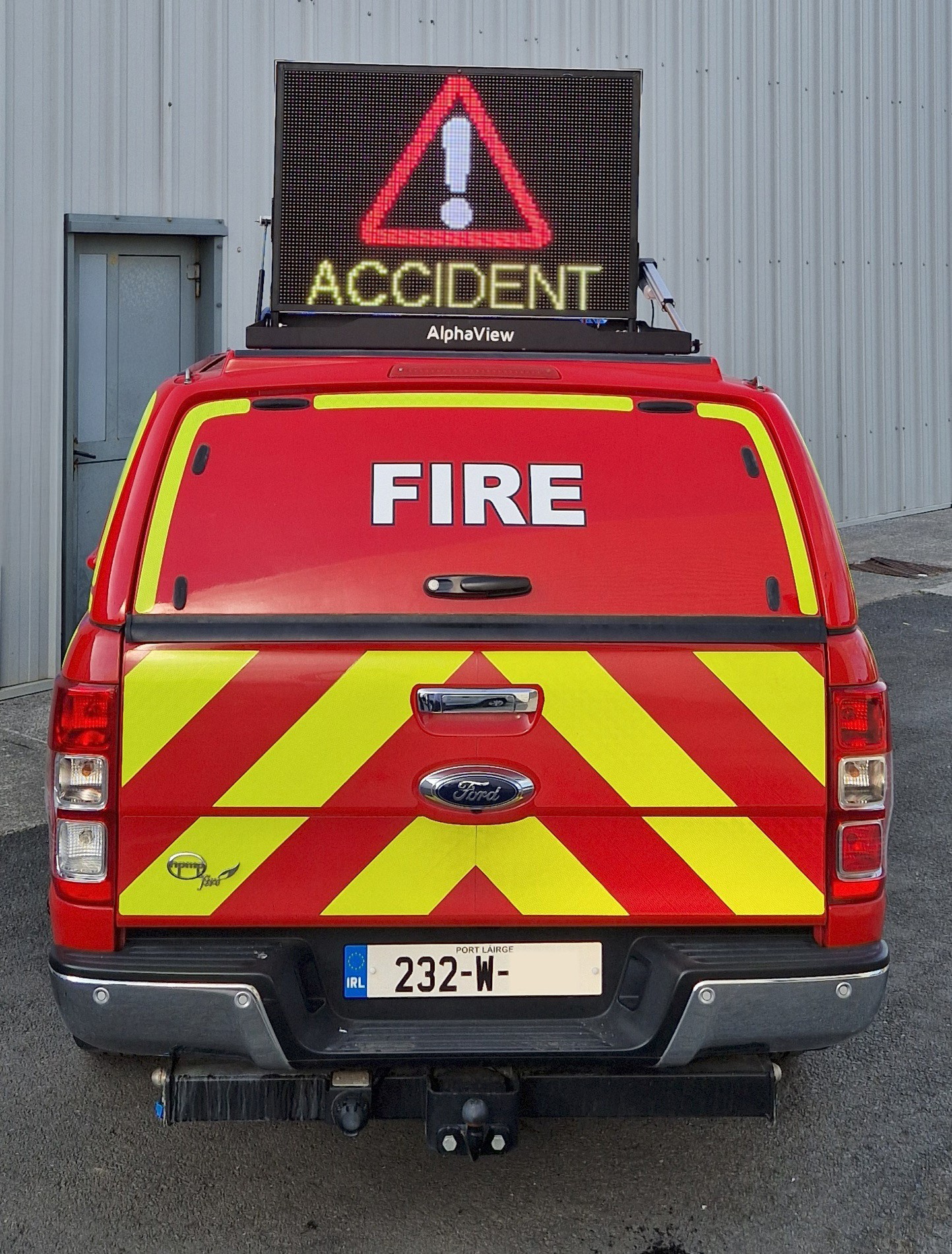

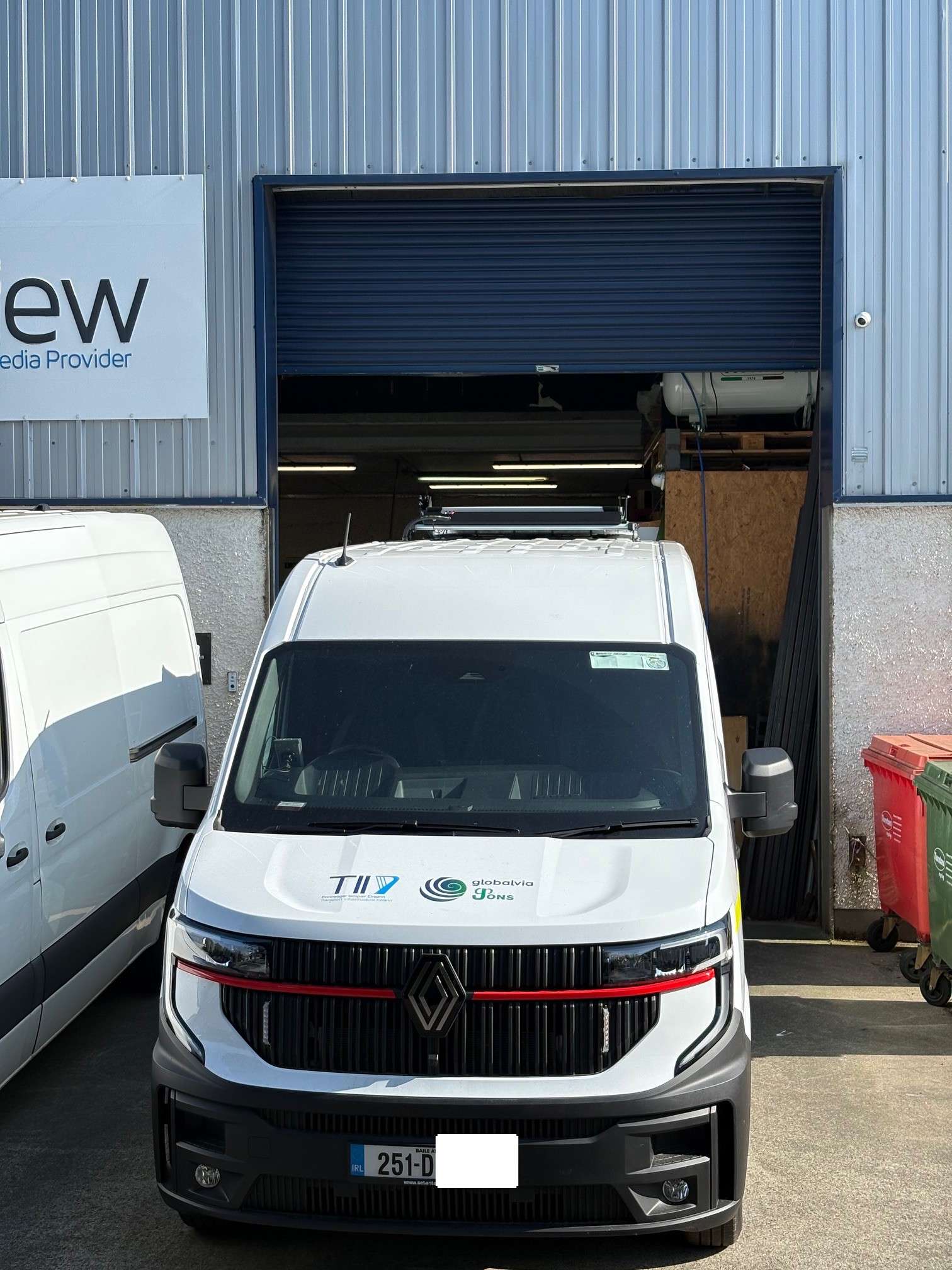

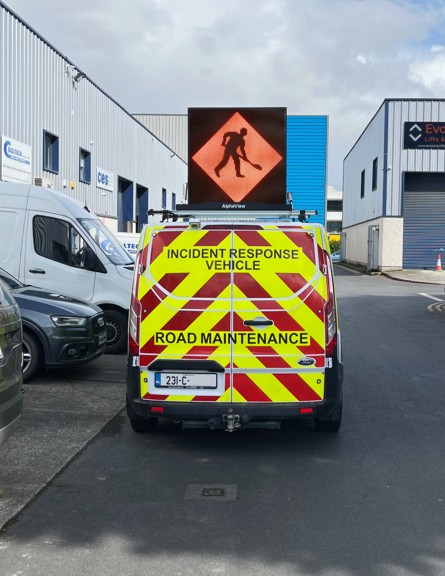

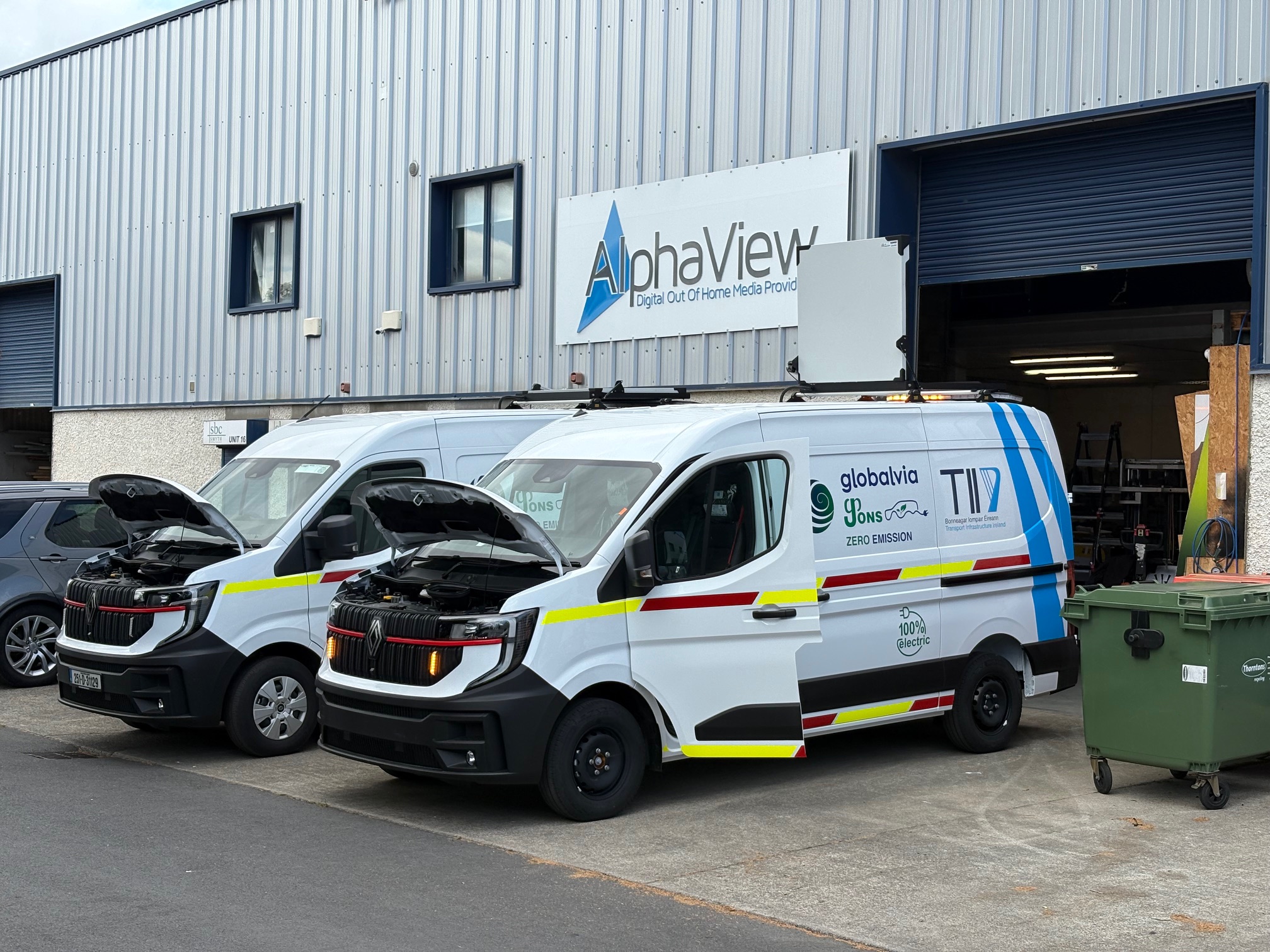

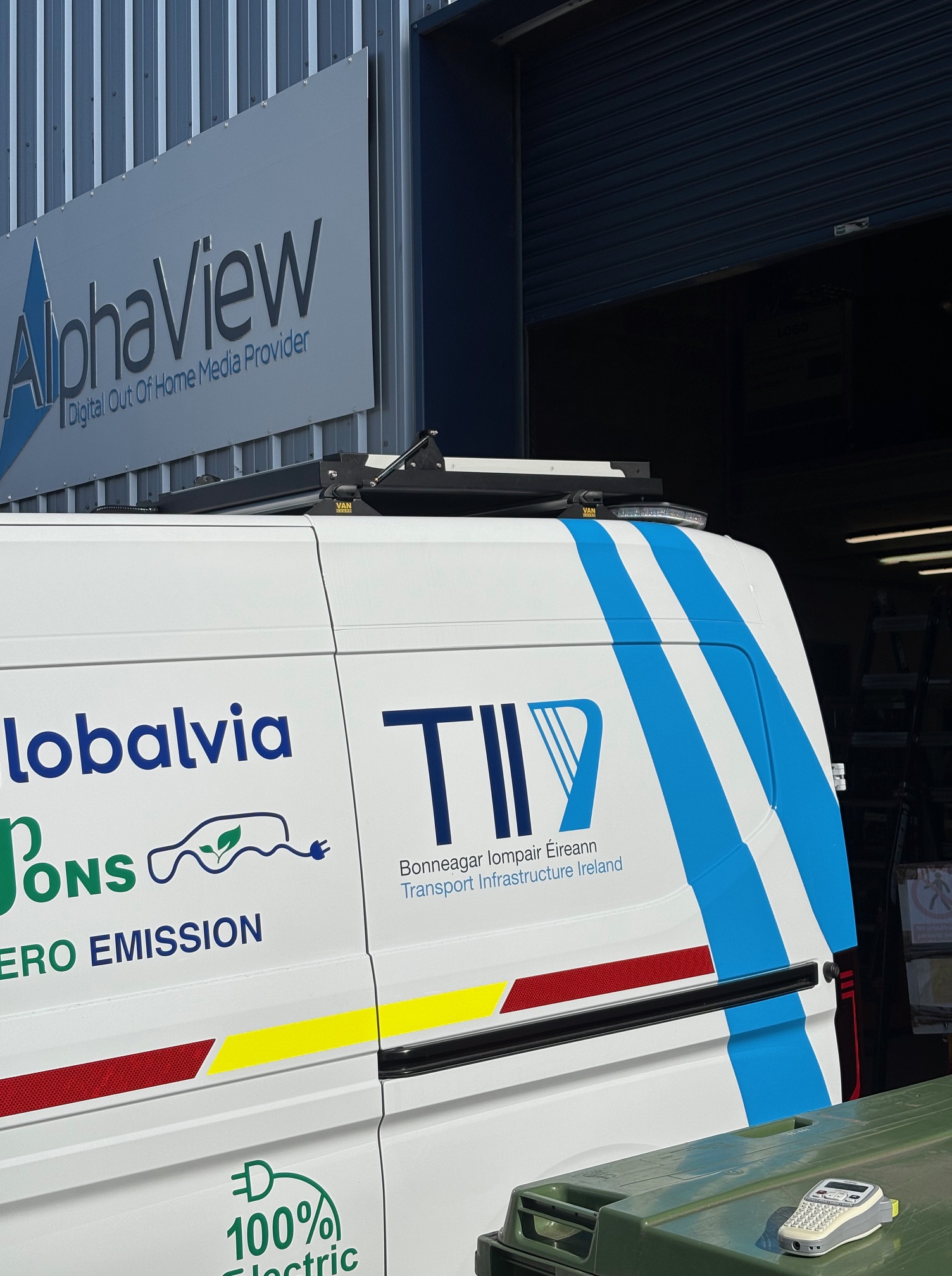

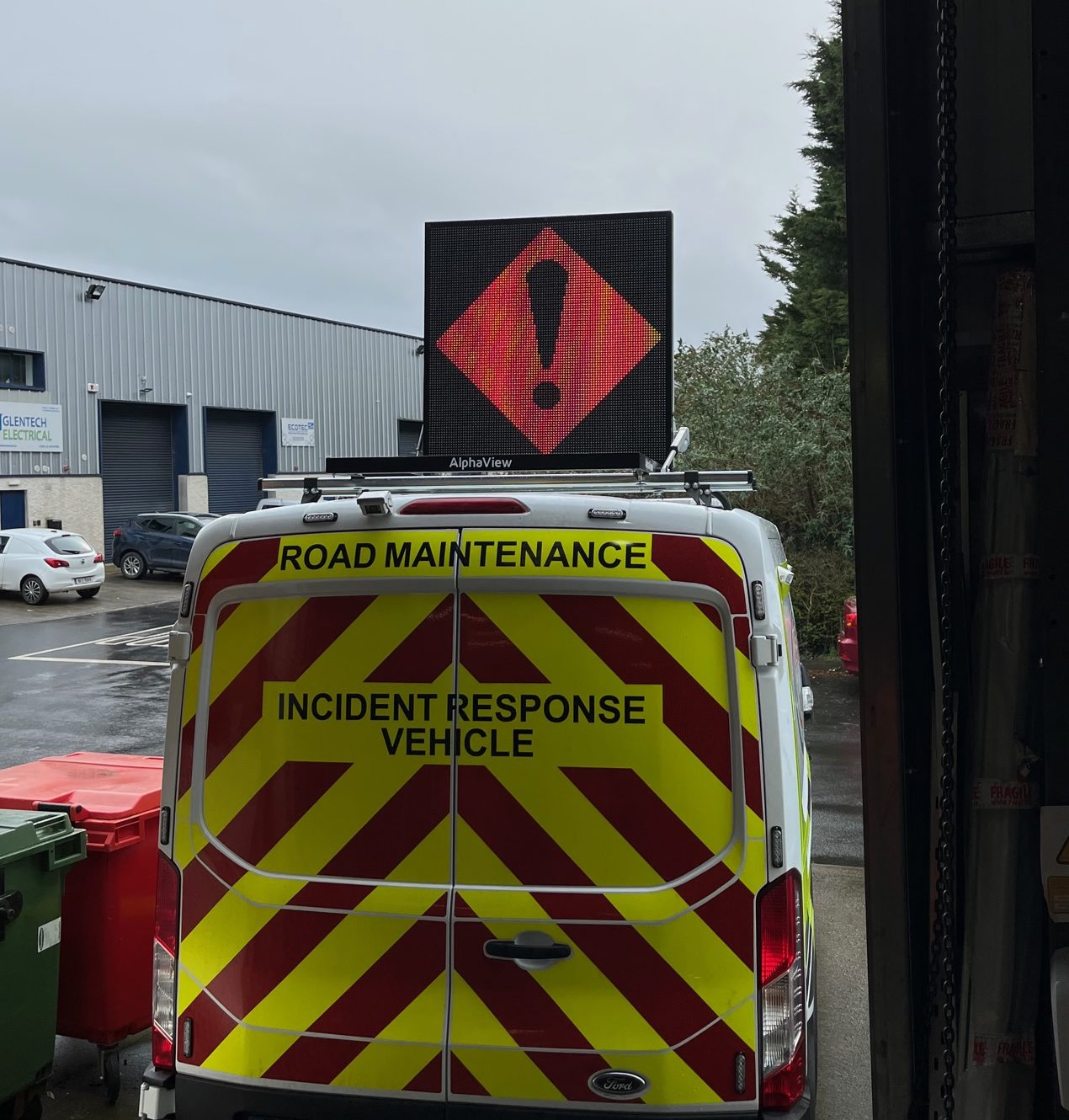

LED Vehicle Rooftop Mounted VMS

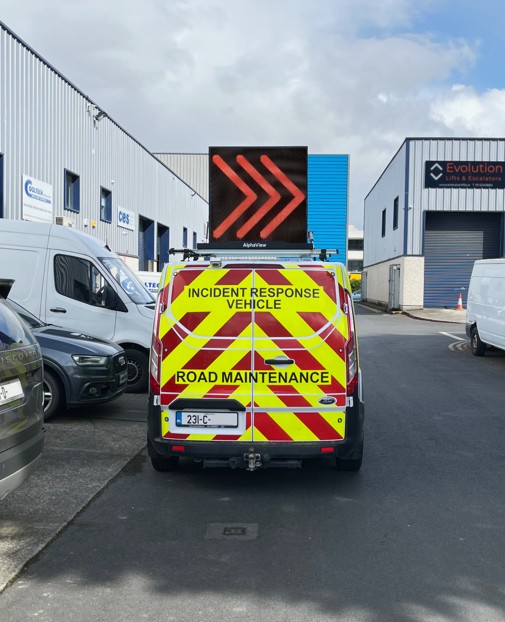

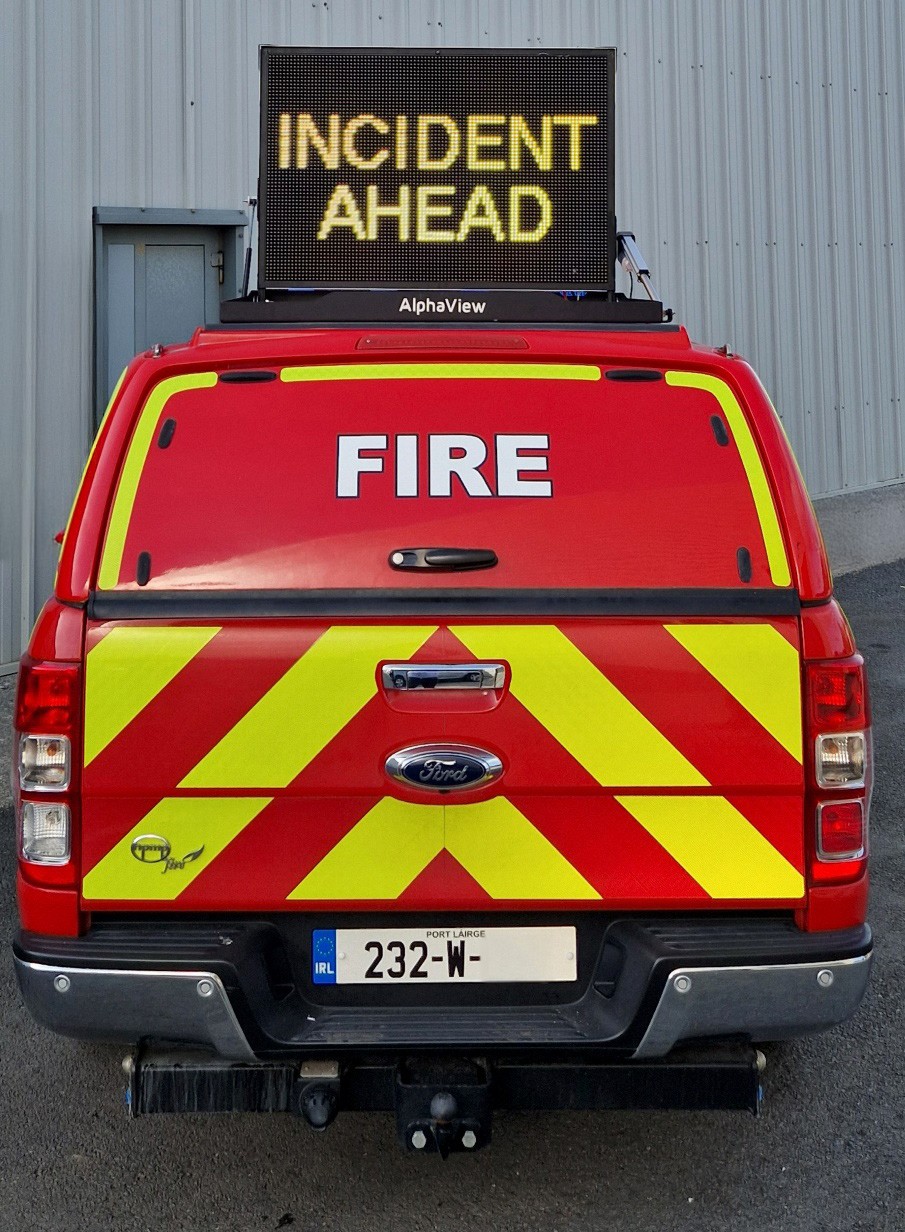

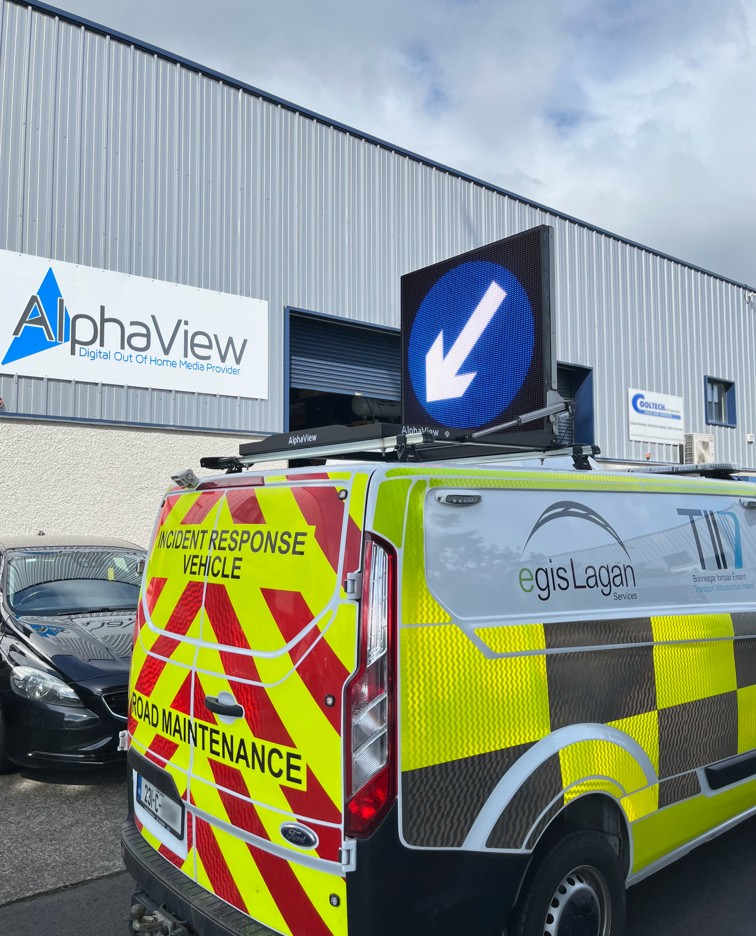

Our LED van and car (roof-mounted) VMS displays are designed for motorway maintenance / road works vehicles, council vans as well as any other service vehicles.

VMS LED signs improve the flow of traffic during roadworks, indicate incidents on the road, and assist with general road maintenance or diversions. They are useful for building sites as well.

Main Features

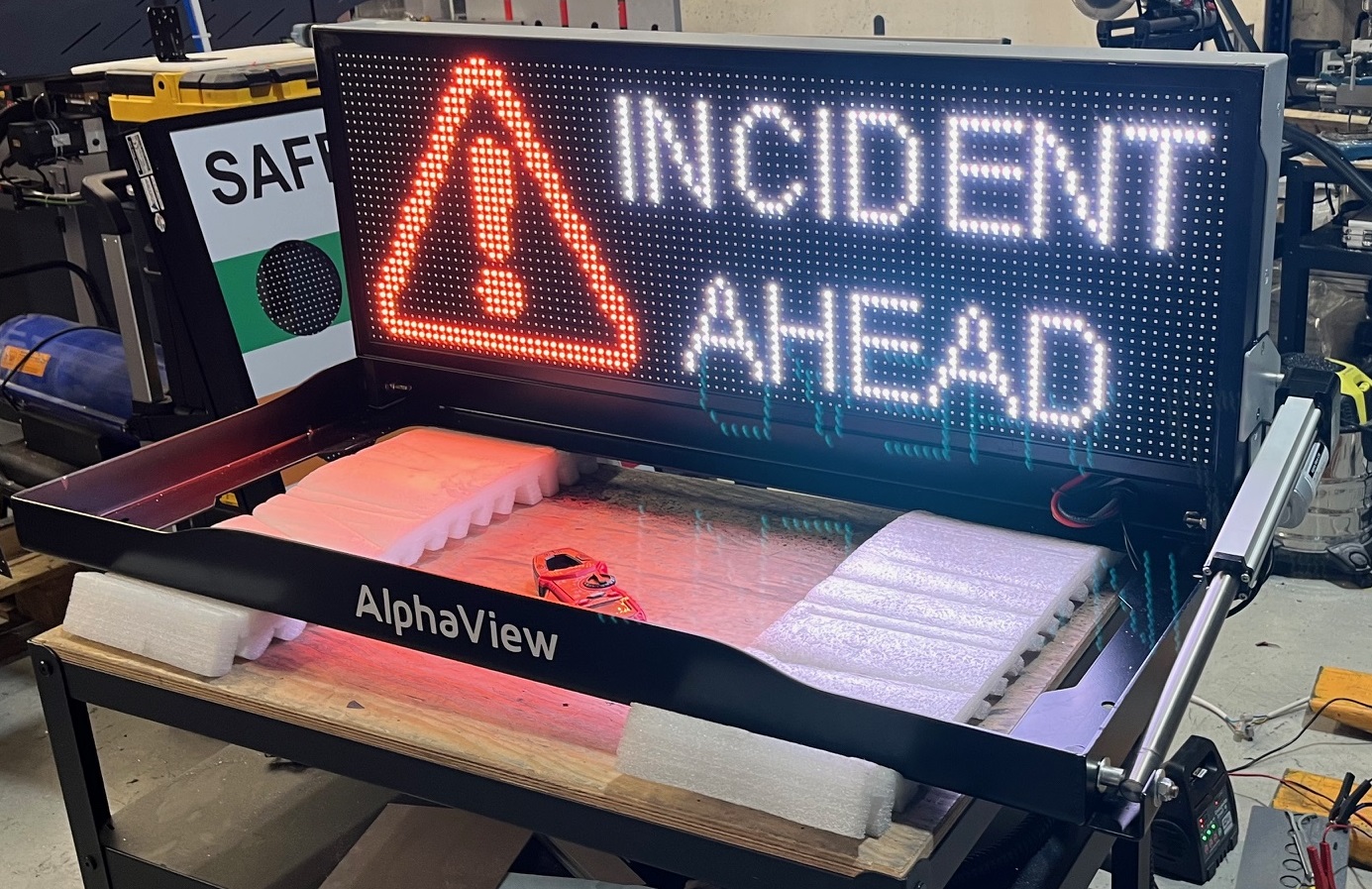

Automatic lifting mechanism for quick and easy set up
High resolution (10 mm pixel pitch)
High brightness (clearly visible in direct sunlight)
Preloaded with set of road signs (full colour), compliant to RSA sign's regulation and EN norm (an additional library can be added as per sector it will be used in)

Controlled through a 7 inch, wireless tablet / keypad mounted on the dash
Lightweight and slim construction - 1x1m panel - only 90mm deep. 54Kg overall weight.
Comes in different sizes (32 x 96 / 32 x 160 / 64 x 64 / 64 x 128 / 96 x 96)
CE Mark - Designed and Build in Ireland

VMS Models

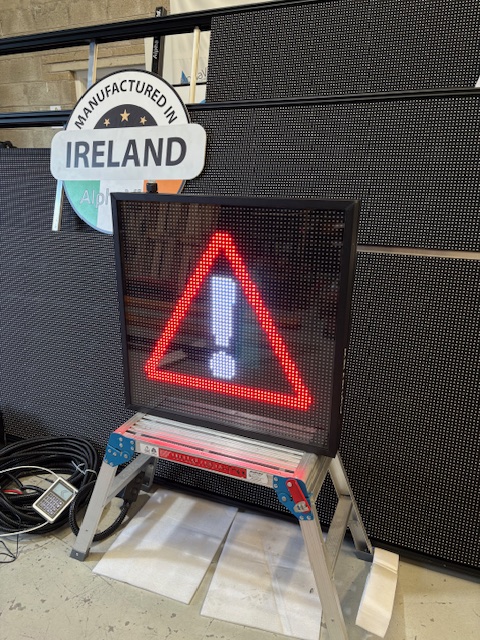

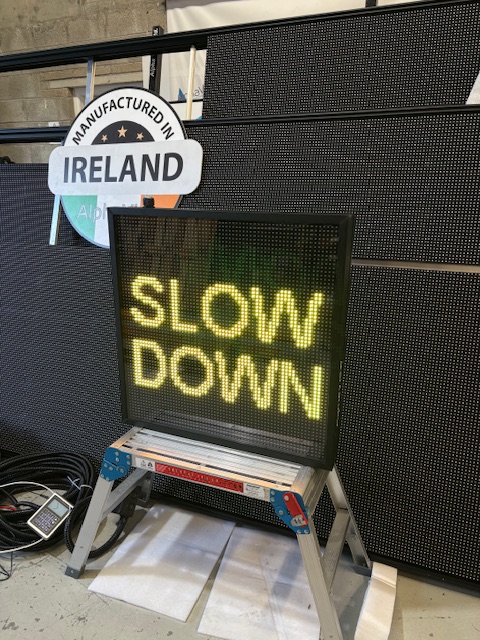

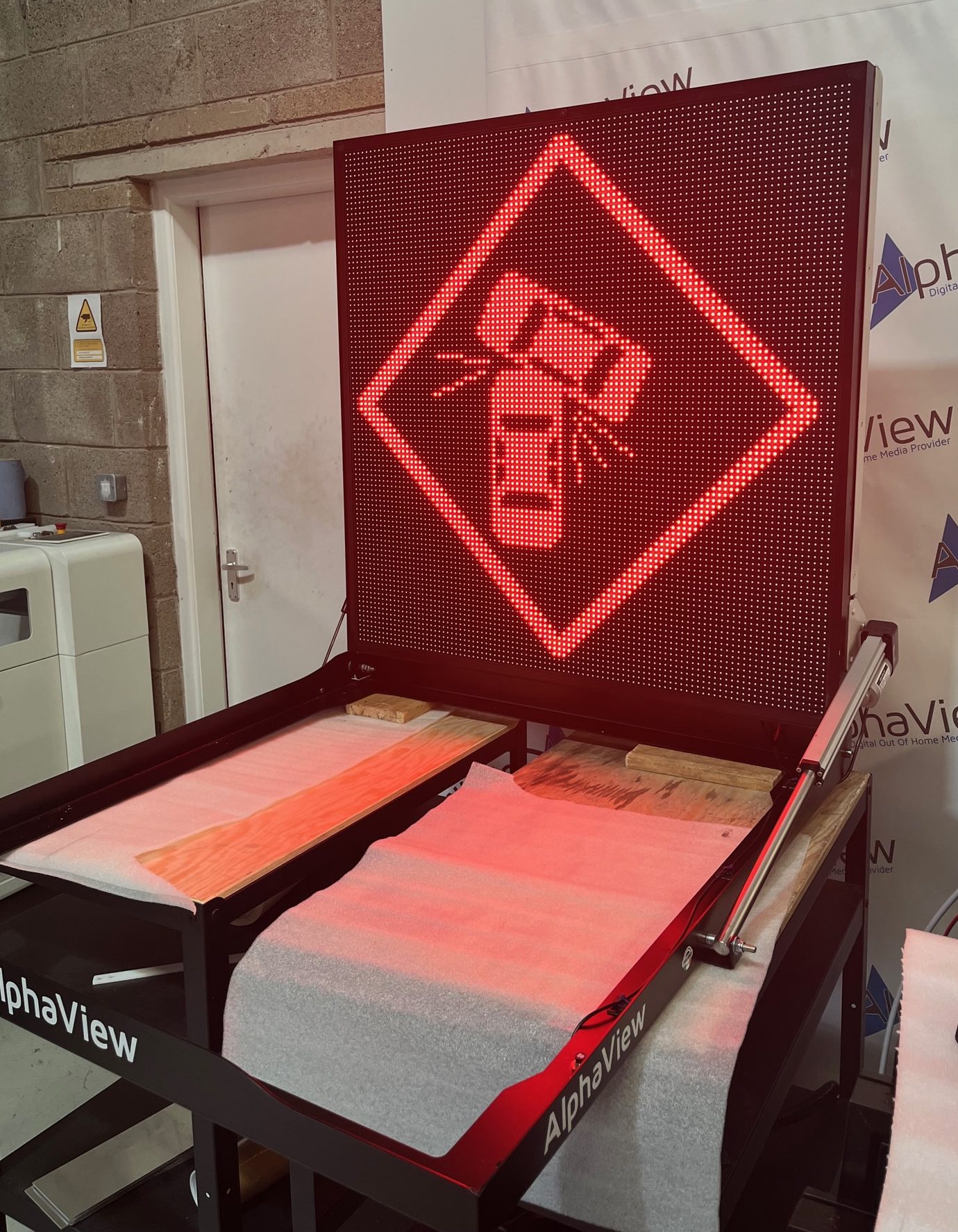

VMS_L1000

Display area size 960 x 960 mm
Chapter 3, 5 and 8 of traffic signs manual compliant
EN12966 Compliant
10 mm pixel pitch
DIP outdoor LED – RGB display (full colour)
Max brightness 10,000 cd/sqm
Resolution 96×96 pixels

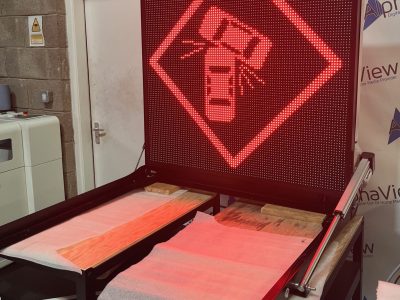

Preloaded with library of full colour road signs (including diamond shape) and warning messages

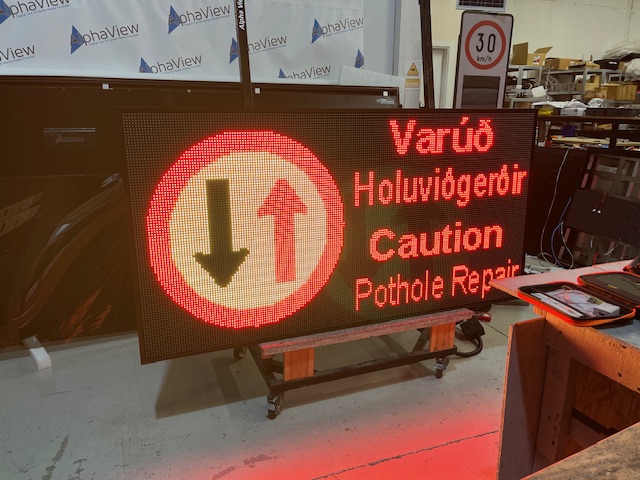

Can display own / custom messages
CE mark – made in Ireland
Power: 12V DC
Combination of aluminium and stainless steel powder coated frame

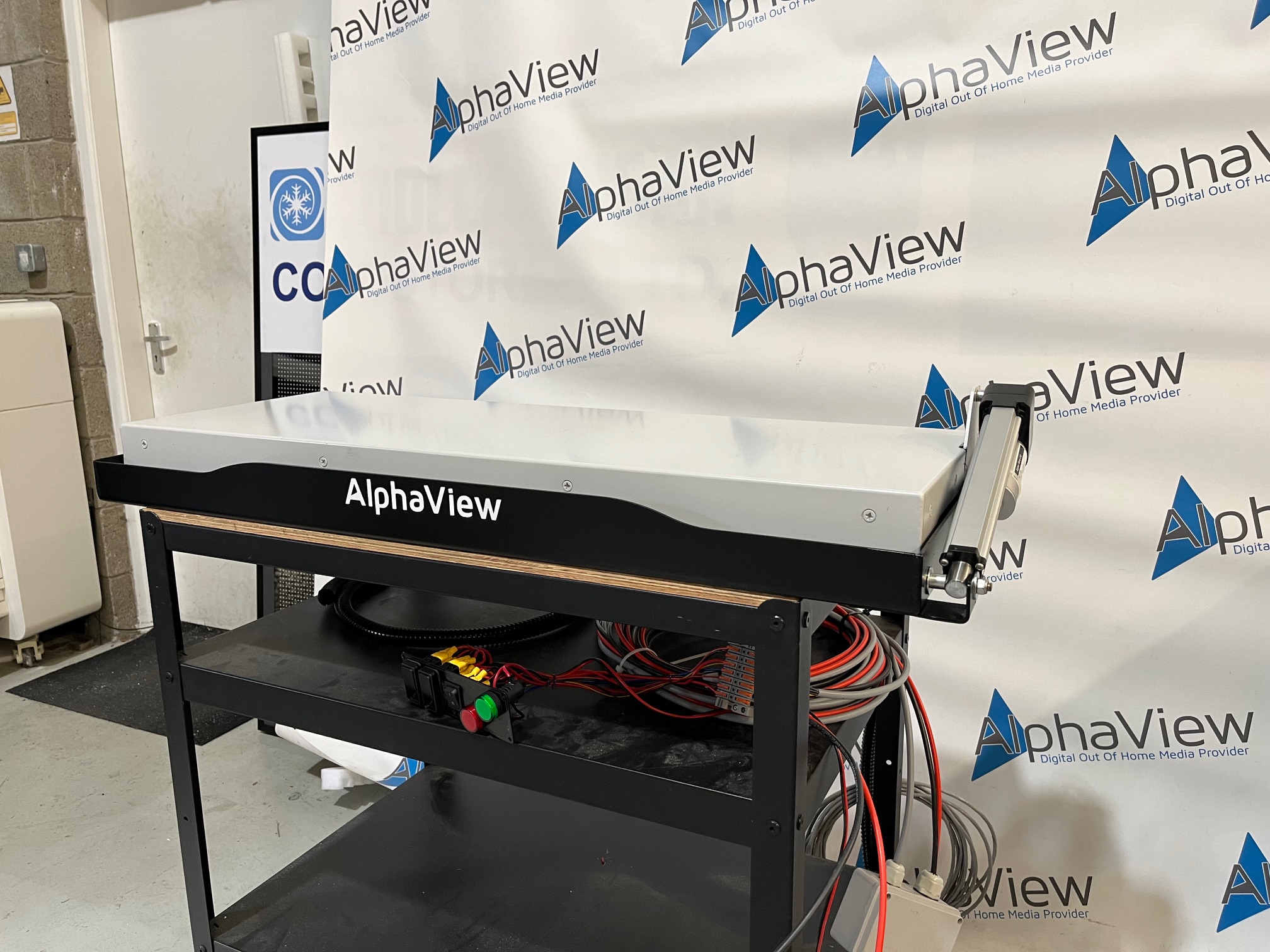

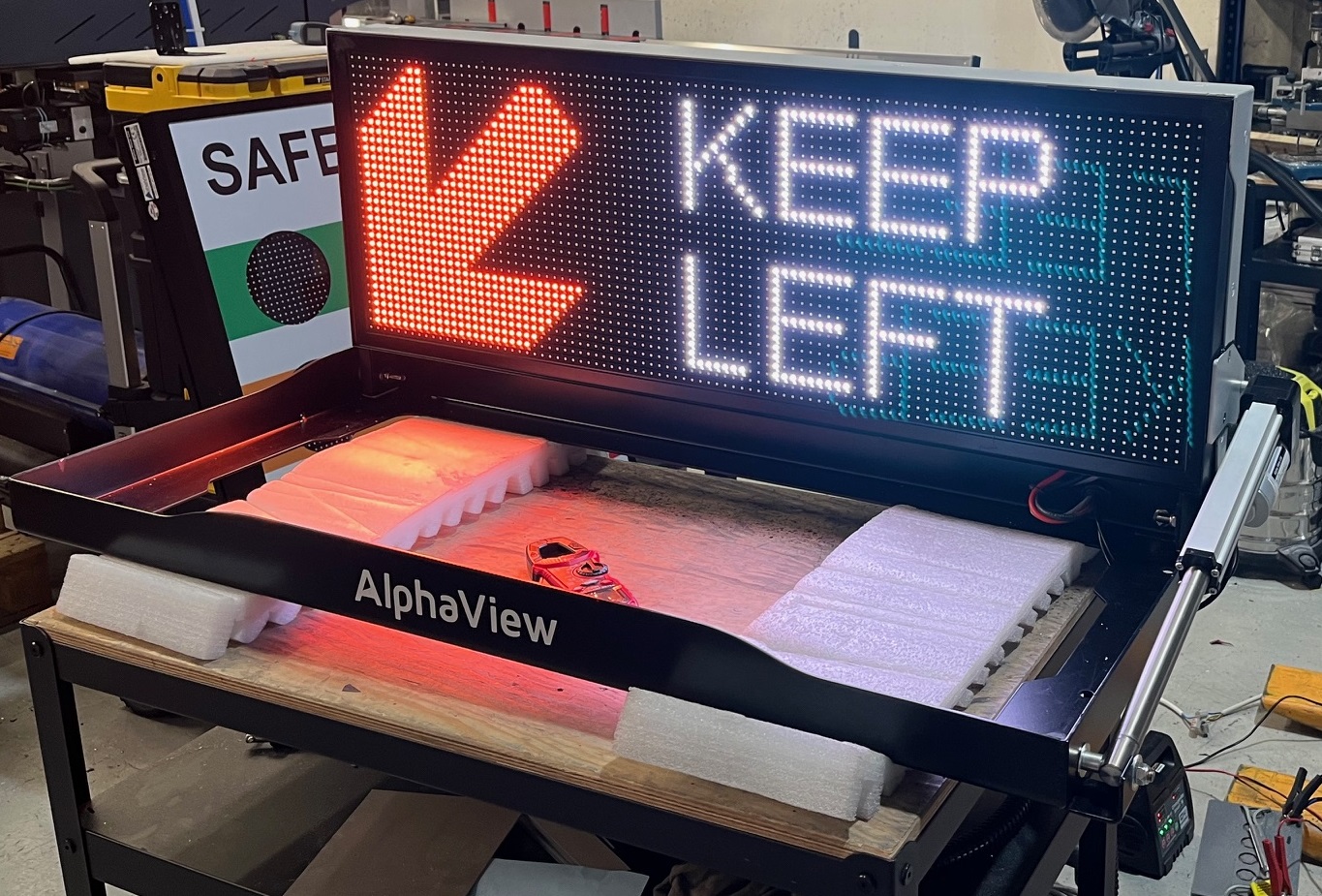

Lifting mechanism with limiters to automatically lift the board to position

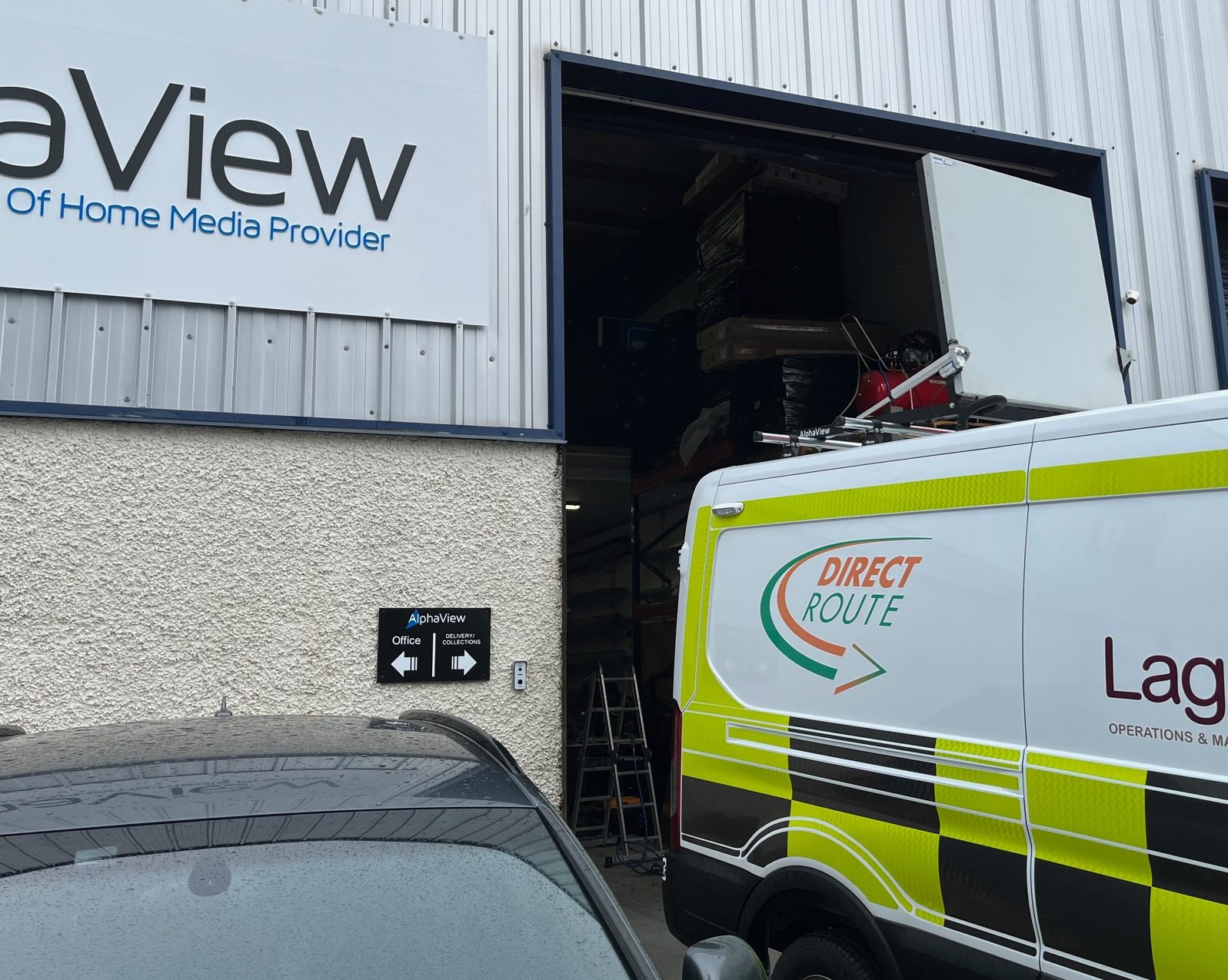

Roof mounted (to the roof rack or direct)
Programmable with 7’’ controller (supplied) and hard wired keypad
built in brightness sensor
weight 54 Kg

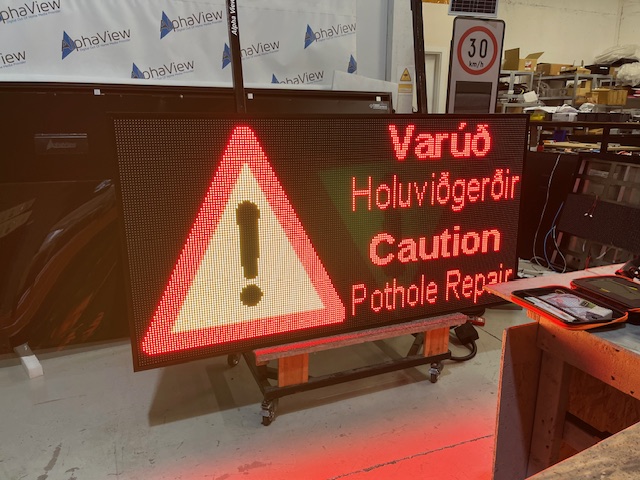

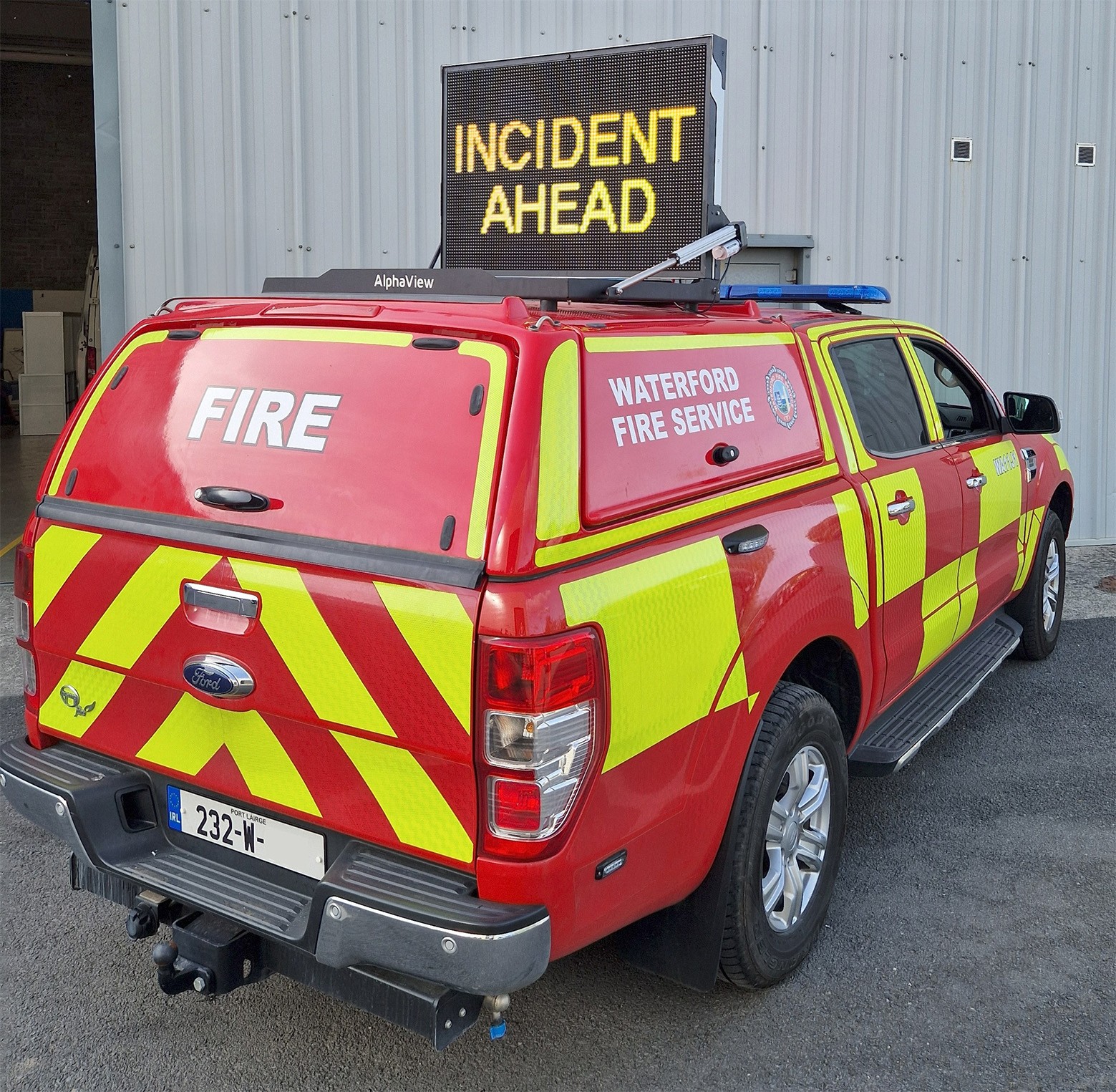

VMS_M700 / M700X2

Display area size 640 x 960 mm (640×1280 – Model M700X2)
Chapter 3, 5 and 8 of traffic signs manual compliant
EN12966 Compliant
10 mm pixel pitch
DIP outdoor LED – RGB display (full colour)
Max brightness 10,000 cd/sqm
Resolution 64×96 pixels (64×128 pixels model M700X2)
Preloaded with library of full colour road signs (including diamond shape) and warning messages
Can display own / custom messages
CE mark – made in Ireland
Power: 12V DC
Combination of aluminium and stainless steel powder coated frame
Lifting mechanism with limiters to automatically lift the board to position
Roof mounted (to the roof rack or direct)
Programmable with 7’’ controller (supplied) and hard wired keypad
built in brightness sensor
weight 39.5 Kg

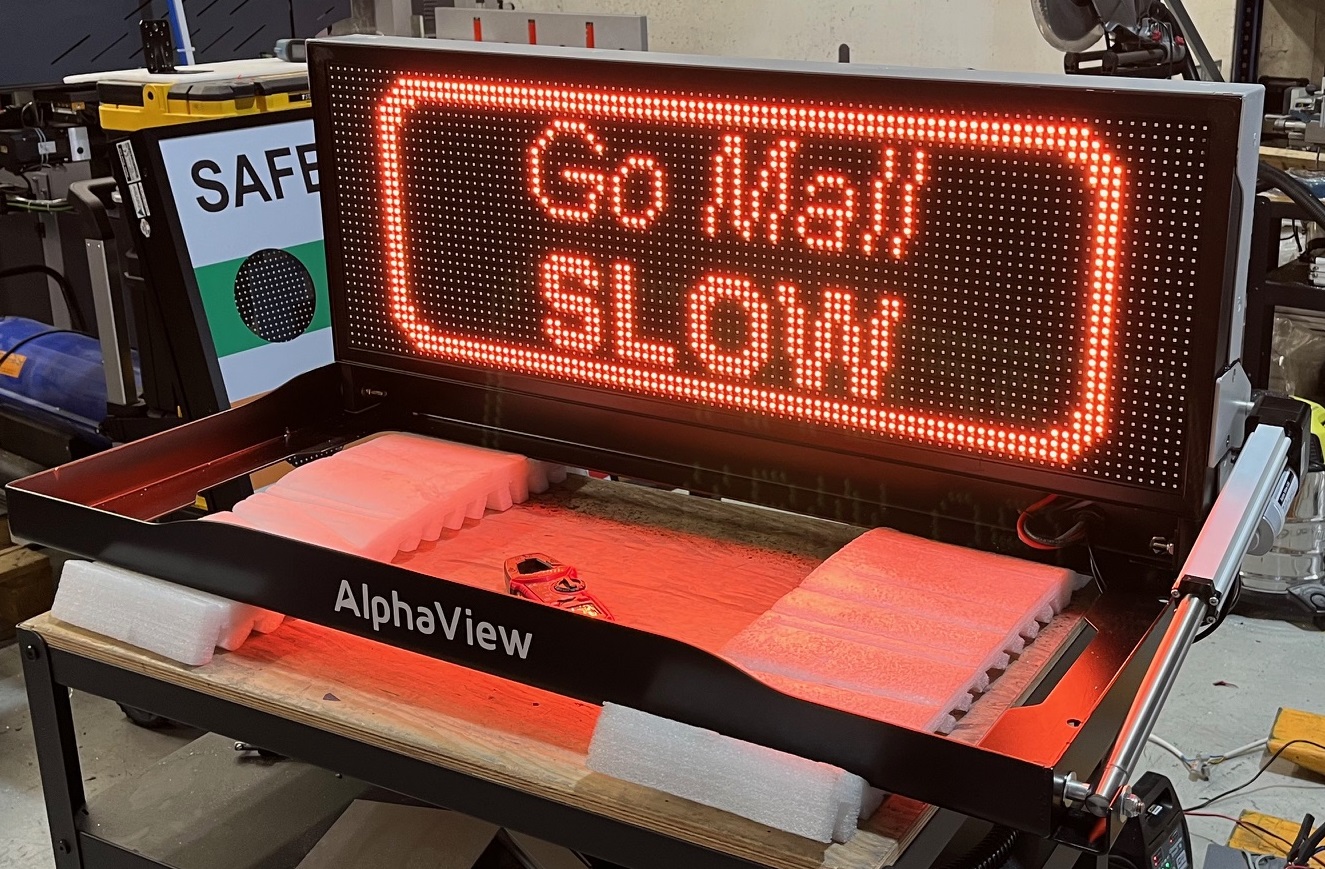

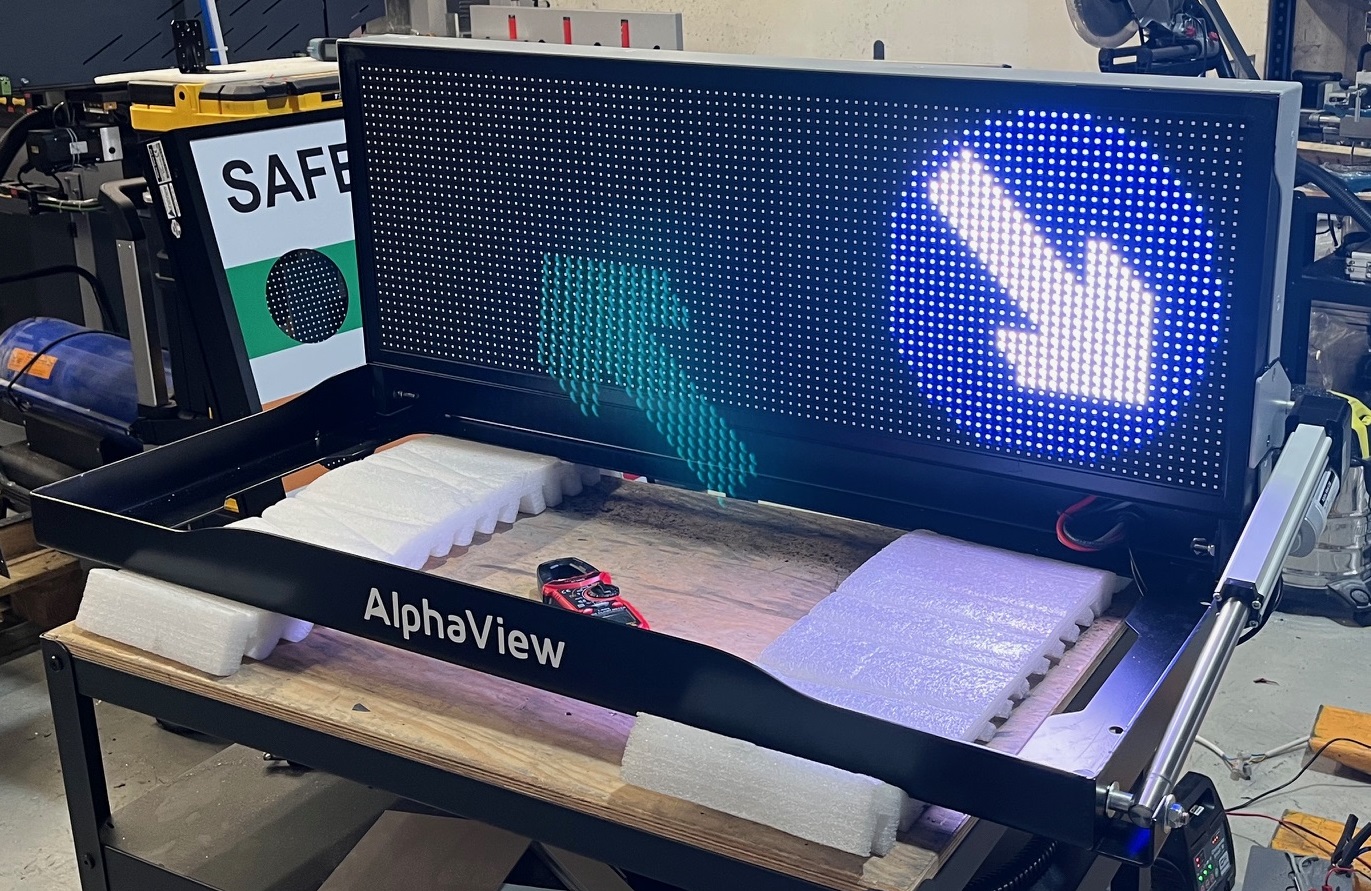

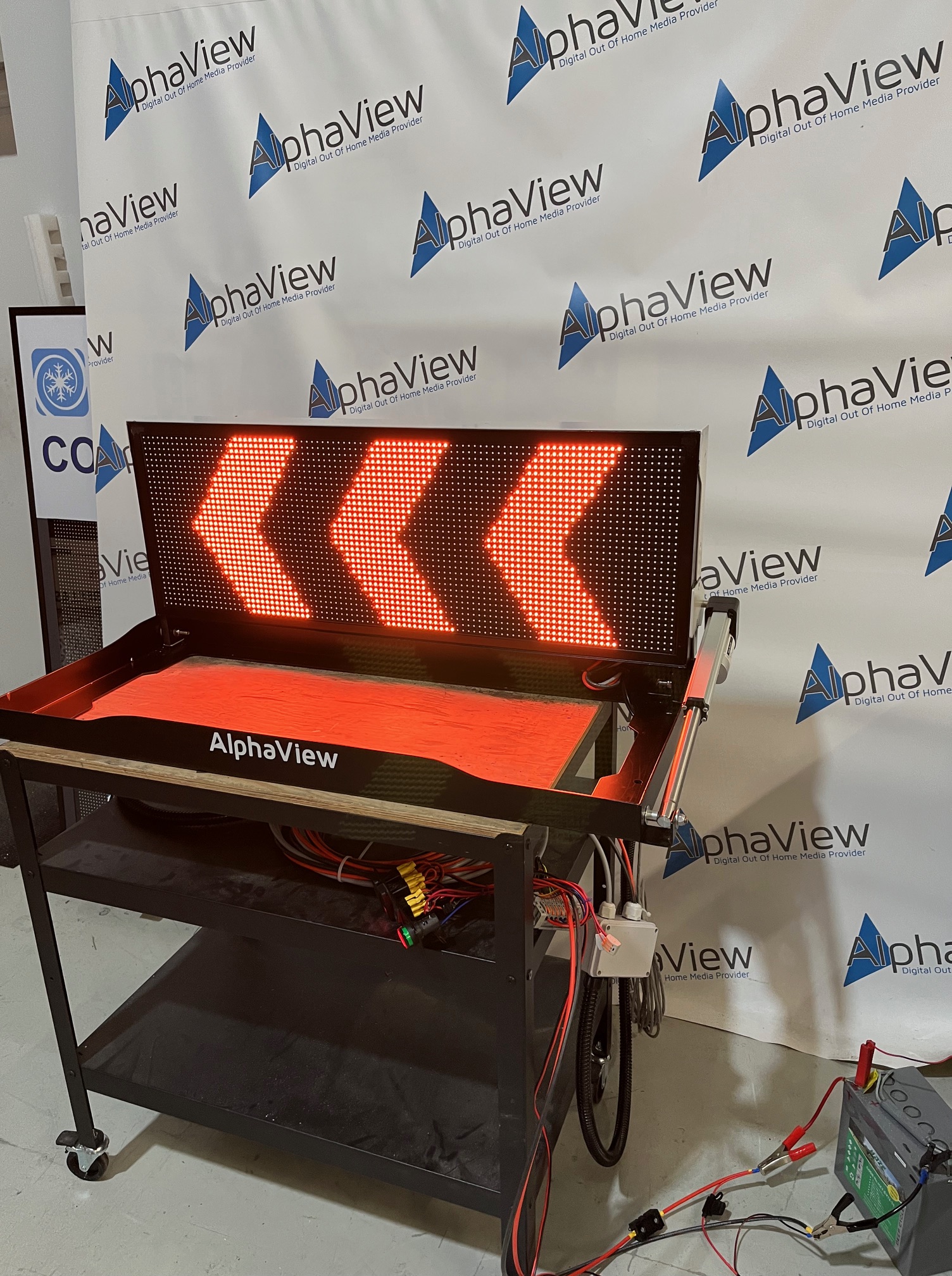

VMS_S400 / S400X3

Display area size 320 x 960 mm (320×1600 – Model S400X3 – Wide Load display)
Chapter 3, 5 and 8 of traffic signs manual compliant
EN12966 Compliant
10 mm pixel pitch
DIP outdoor LED – RGB display (full colour)
Max brightness 10,000 cd/sqm
Resolution 32×96 pixels (32×160 pixels model S400X3)
Preloaded with library of full colour road signs (including diamond shape) and warning messages
Can display own / custom messages
CE mark – made in Ireland
Power: 12V DC
Combination of aluminium and stainless steel powder coated frame
Lifting mechanism with limiters to automatically lift the board to position
Roof mounted (to the roof rack or direct)
Programmable with 7’’ controller (supplied) and hard wired keypad
built in brightness sensor
Approx. weight 27 Kg

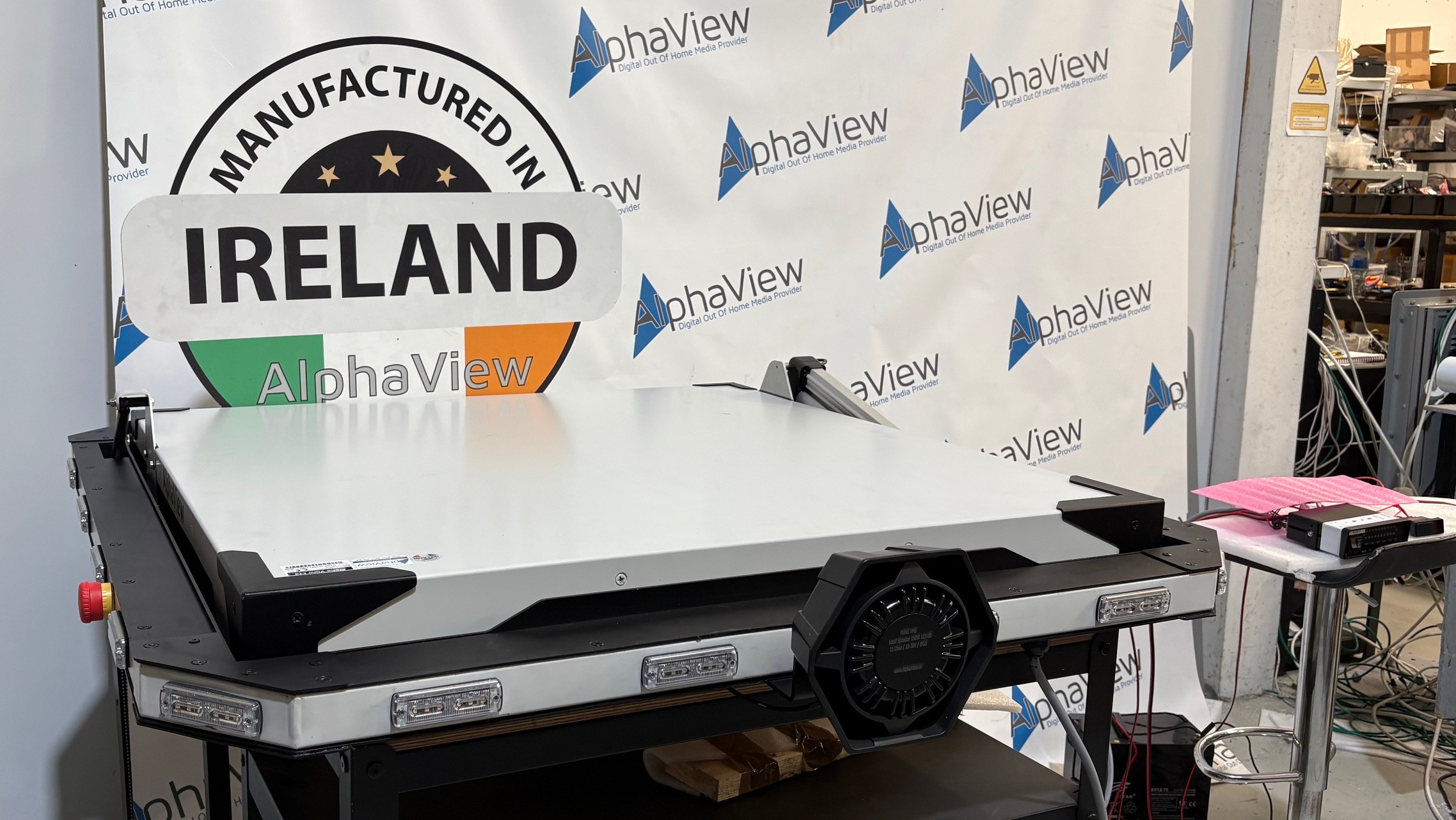

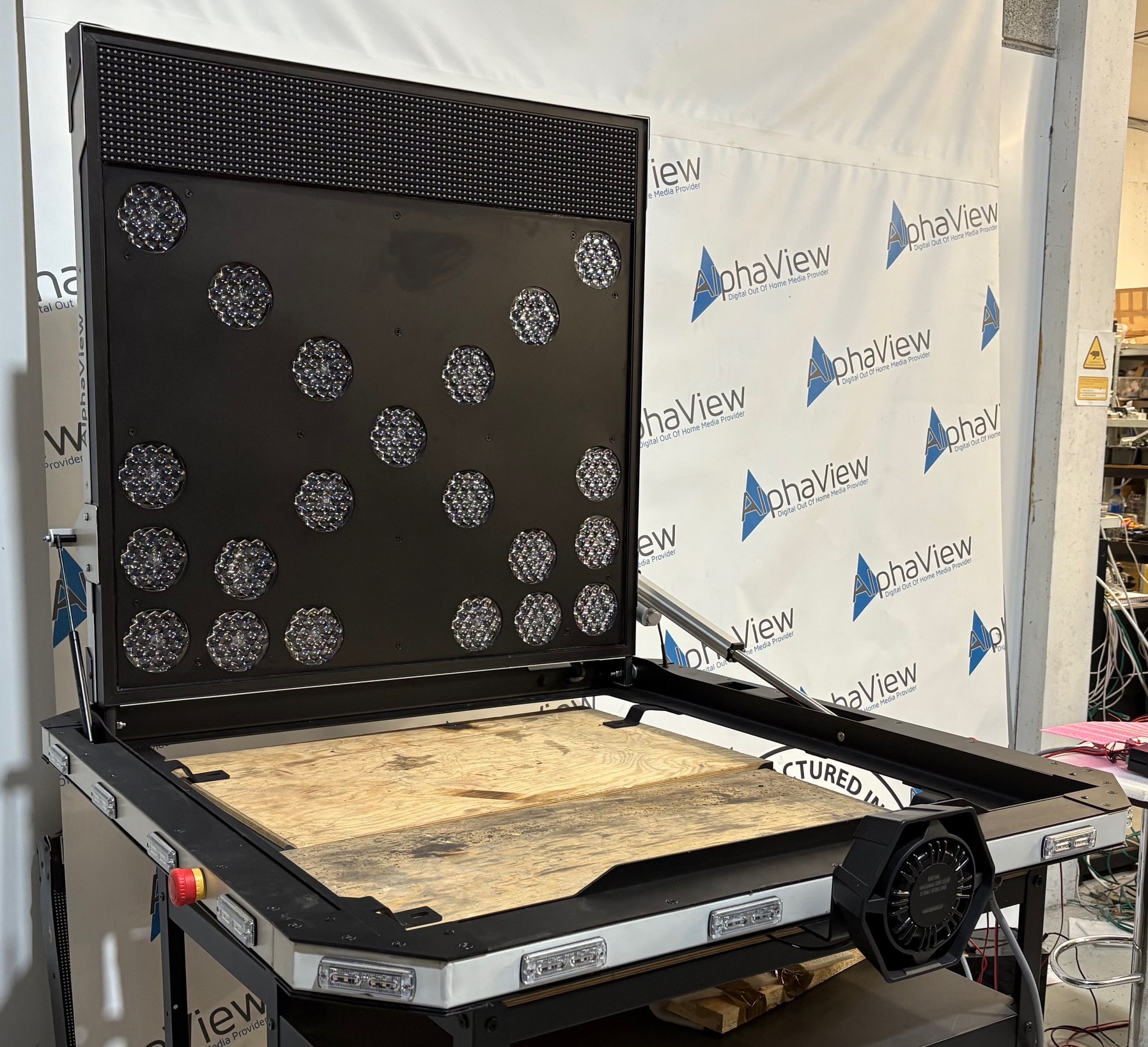

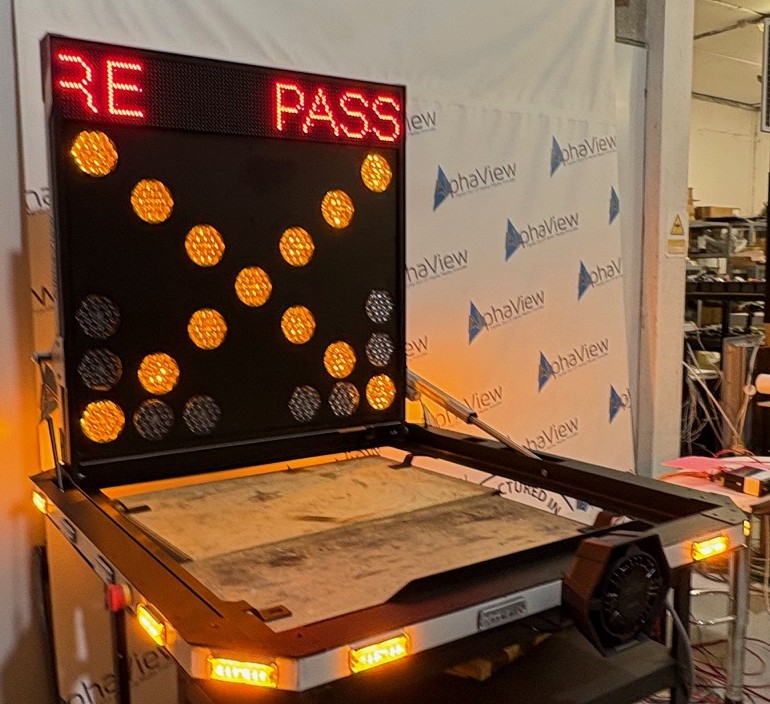

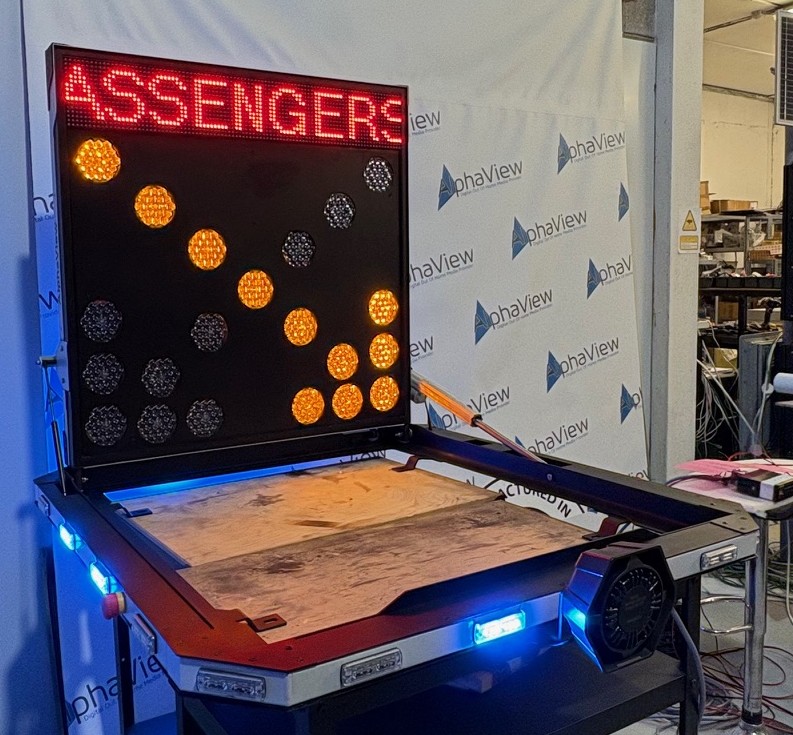

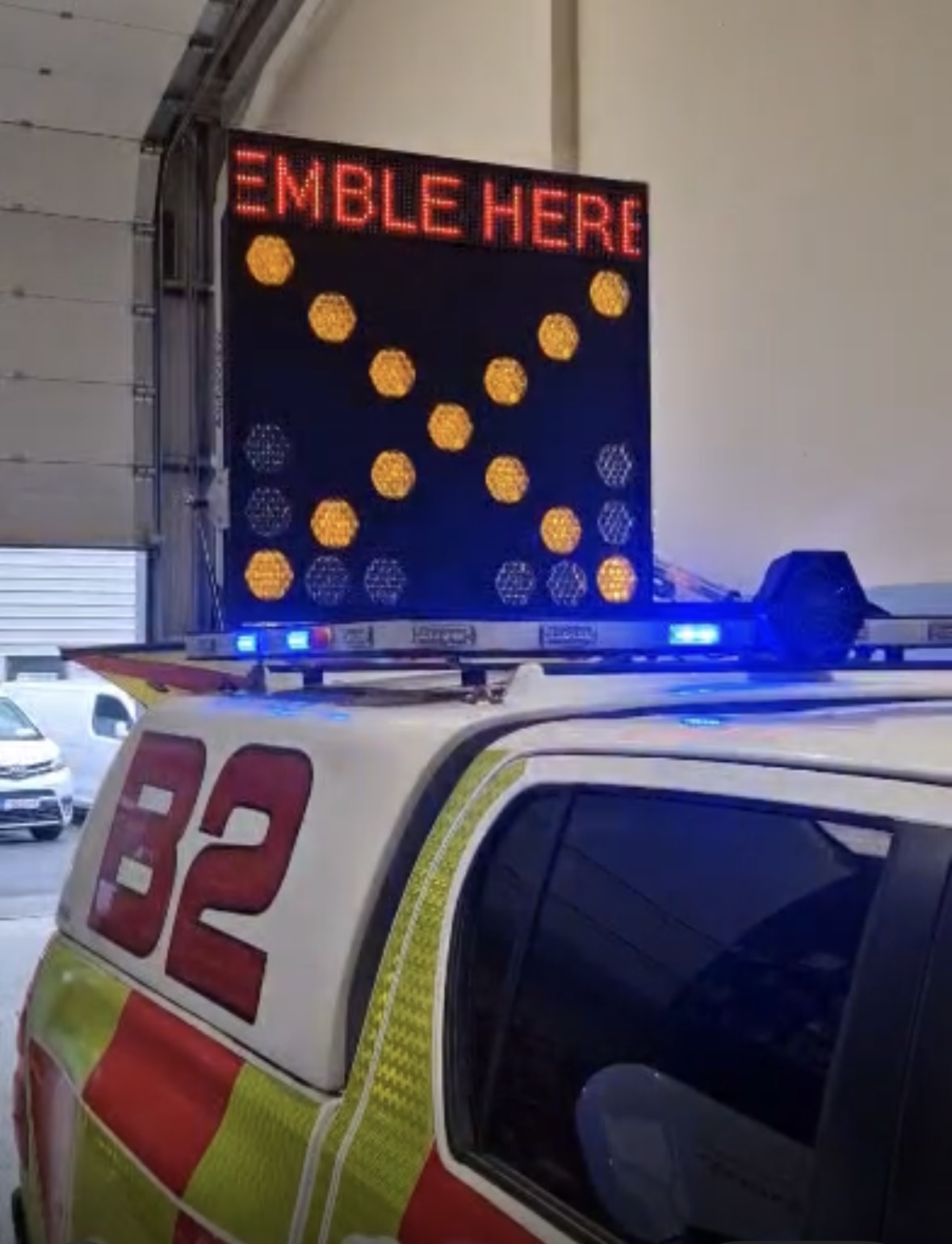

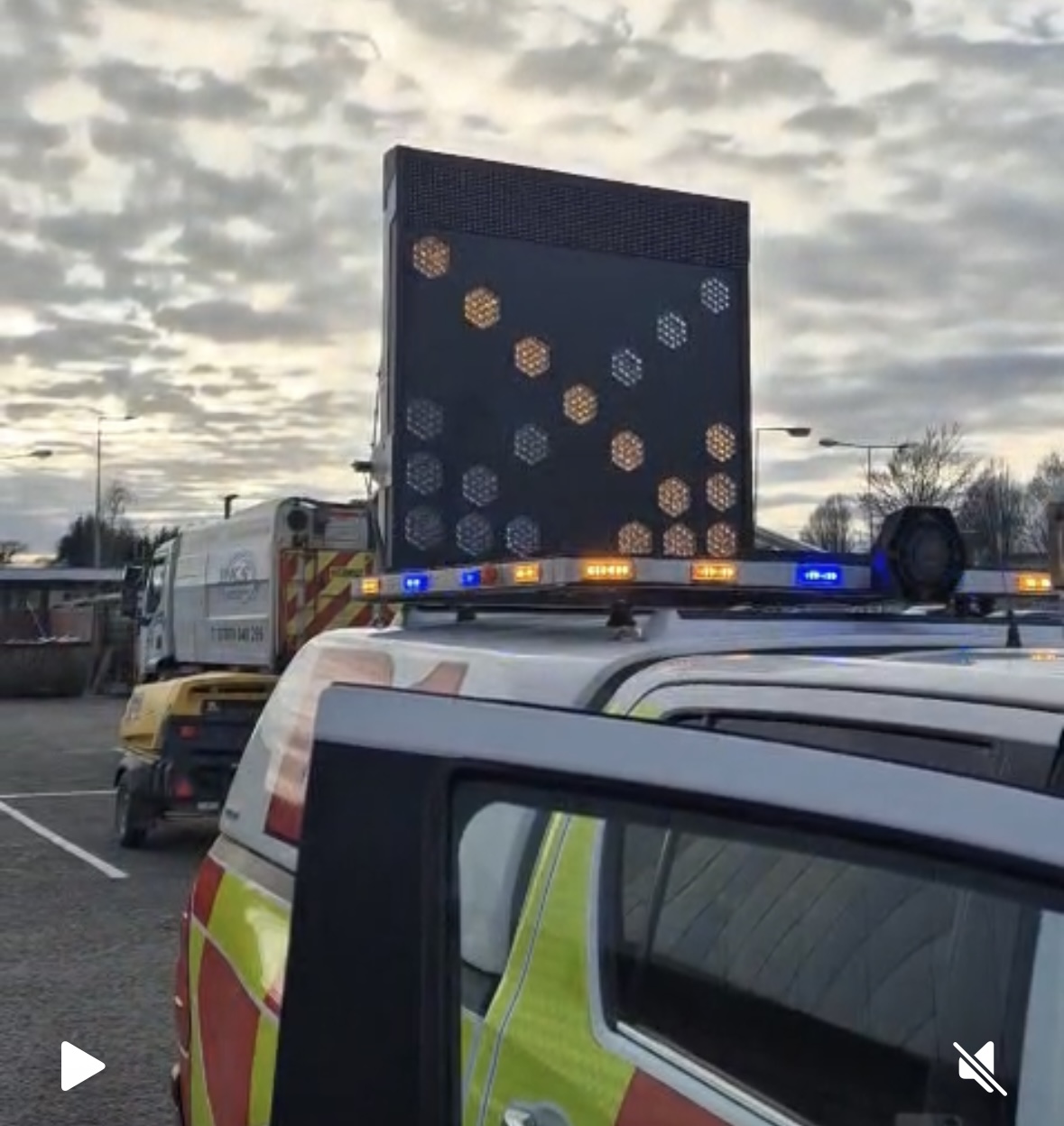

PEMS - Passengers Evacuation Management System

Light board with Text messages display, 360 deg flashing lights and loud speaker with prerecorder evacuation audio messages
LED lights 1x1m – amber L8H EN12352 – 2200 cd
LED text display – 10,000 cd/sqm RGB – 160 x 960 mm
Can display own / custom messages
CE mark – made in Ireland
Power: 12V DC
Combination of aluminium and stainless steel powder coated frame
Lifting mechanism with limiters to automatically lift the board to position
Roof mounted (to the roof rack or direct)
hardwired controller on the dash
Loudspeaker with audio message on a separate switch
amber and blue flashing strobe lights E20 R10, E9 R65
Lights can display Left arrow / Right Arrow or X
emergency stop button on each side
modern and sleek design
Designed specifically for Airport’s firedepartment to assist with passengers evacuation from the aircraft.

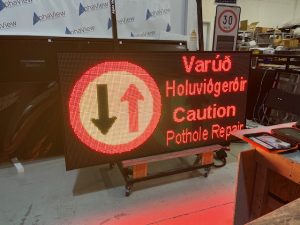

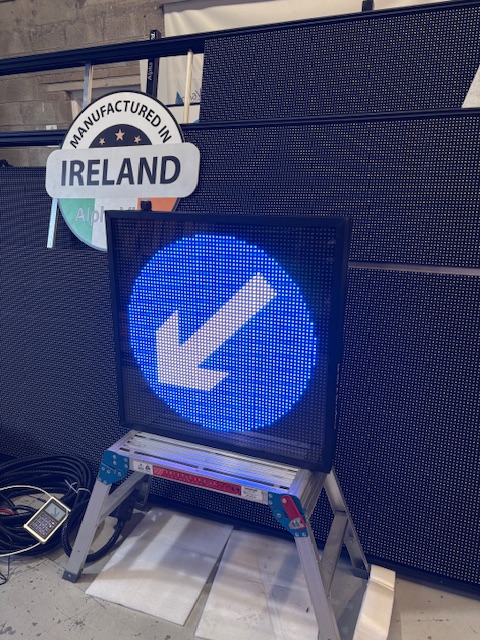

VBM - Vehicle back mounted VMS

Display area size 640 x 640 mm (up to 960×1920 mm)
Chapter 3, 5 and 8 of traffic signs manual compliant
EN12966 Compliant
10 mm pixel pitch
DIP outdoor LED – RGB display (full colour)
Max brightness 10,000 cd/sqm
Resolution 64×64 pixels (up to 96×192 pxls)
Preloaded with library of full colour road signs (including diamond shape) and warning messages
Can display own / custom messages
CE mark – made in Ireland
Power: 12V -24 VDC
Combination of aluminium and stainless steel powder coated frame
Mounted to the back of the vehicle
Programmable with 7’’ controller (supplied) and hard wired keypad
built in brightness sensor
weight 19 Kg
Designed for Road sweepers / line painting vehicles / slow moving vehicles
