LED Overhead Lane Displays / Toll Plaza and motorway VMS signs

LED Overhead Lane Displays

Toll Plaza Signs

Alphaview

LED Overhead Lane Displays / Patron Fare Displays / Toll Plaza Signs

Alphaview

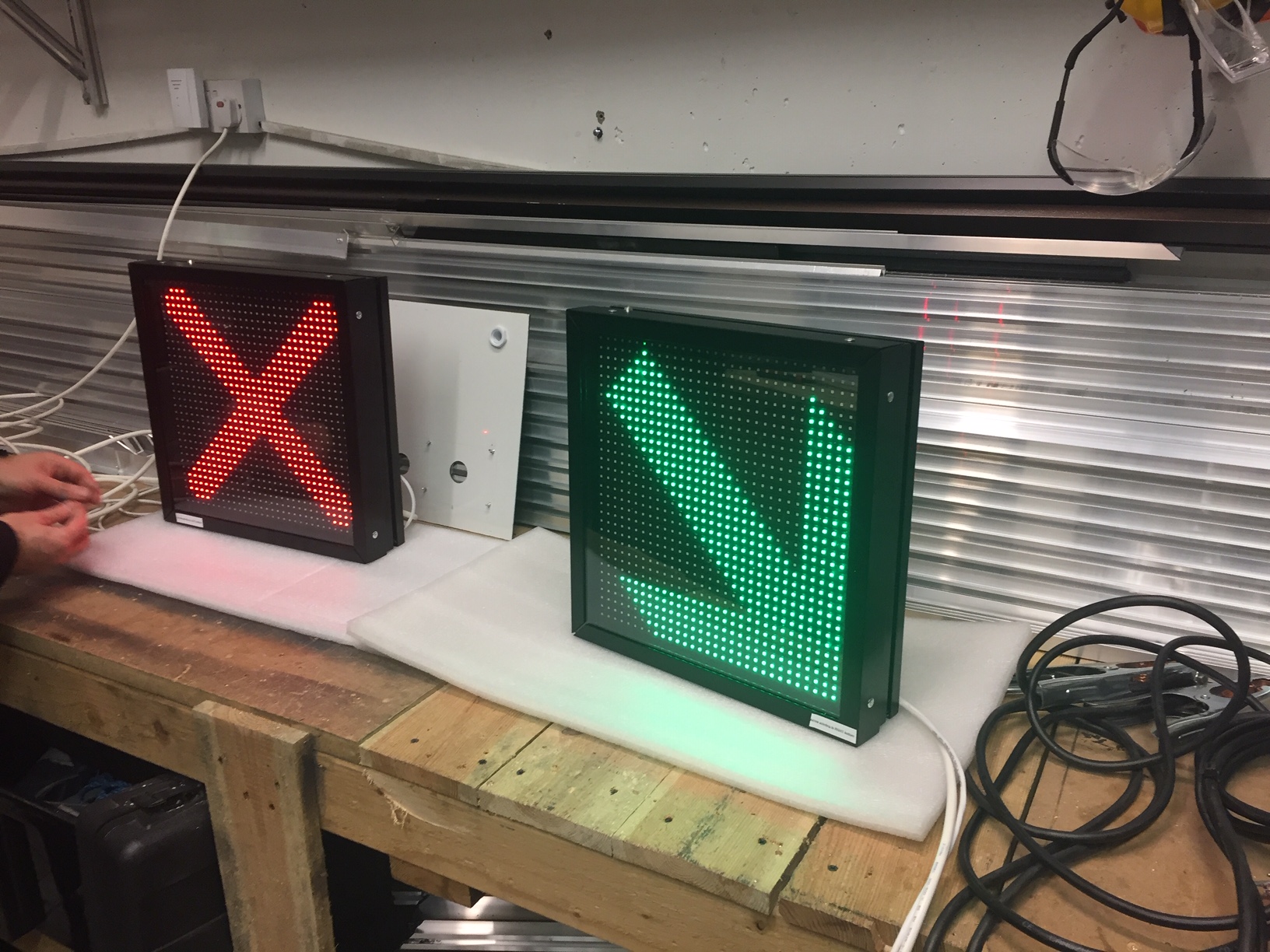

Our LED Overhead Lane Display can be preprogramed with a simple red X and green Arrow or a set of various road signs and messages. These can be triggered using existing relay system, wired button / switch or radio switch.

Alphaview

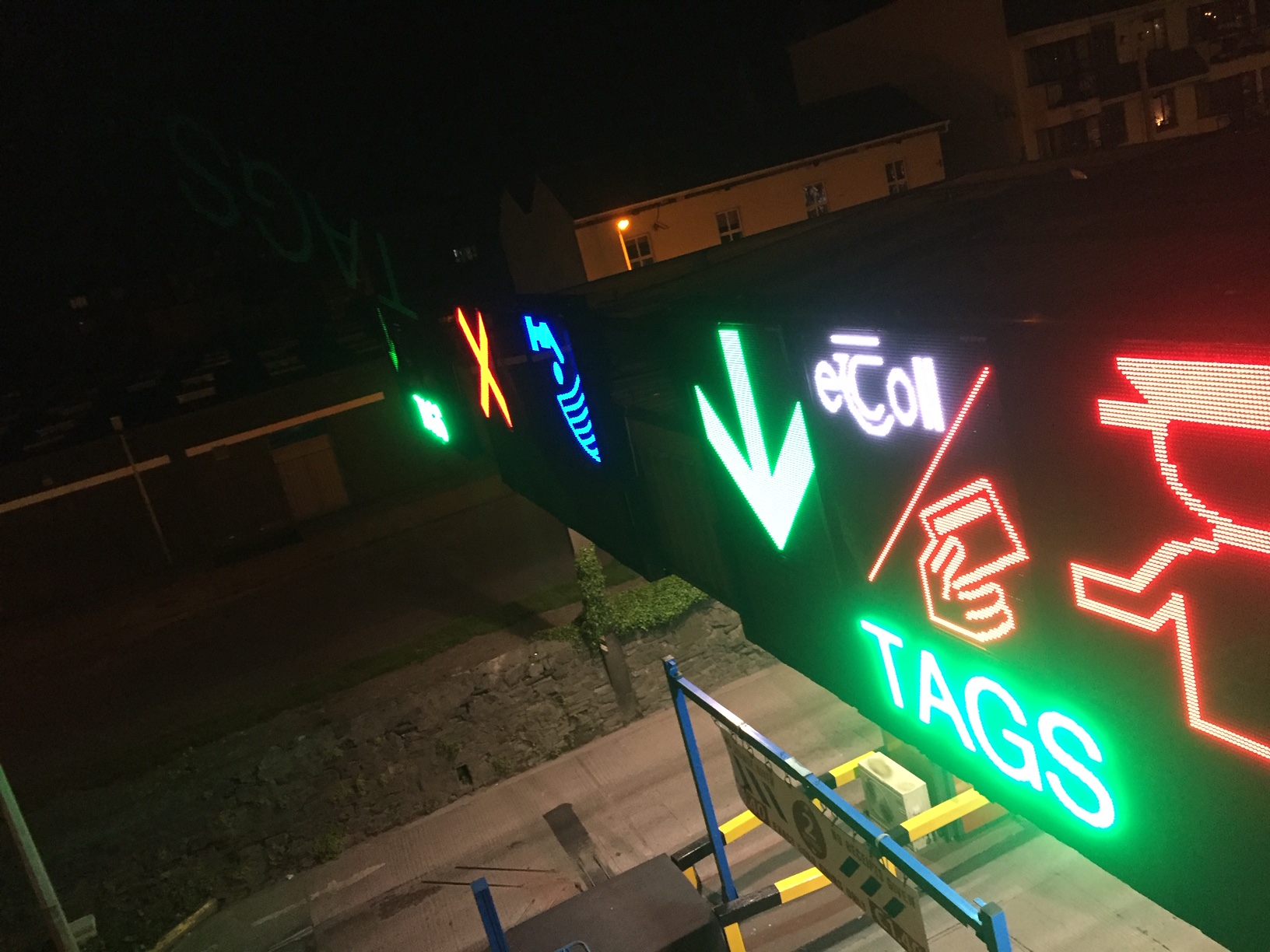

Our Dublin made overhead lane displays are compatible with all existing toll signs across Ireland. By upgrading to our LED signs you save on the overall investment, as there's no need to rewire the lanes or Comms room. The signs are 'plug and play'

Alphaview

Toll Plaza Sign Features

Alphaview

A range of full colour icons and symbols
Very Bright, high model brightness of up to 7500 cd/sqm - clearly visible in direct sunlight,
front or back service access,
Aluminium enclosure, can be supplied with policarbon glass at front (only if required)

Alphaview

standard size 1x1m - perfect fit to the existing frames
alternative sizes available
Built-in brightness sensor reduces brightness at night or on cloudy days
Connected to existing infrastructure with I/O volt free contacts

Alphaview

Patron Fare Displays (PFD) Features

Alphaview

Compatible with all Toll Plazas in Ireland (plug and play)
RGB - displays fare in red / and other messages in green
Various sizes available as per location of the sign
Very Bright, high model brightness of up to 7500 cd/sqm - clearly visible in direct sunlight,
Aluminium enclosure, can be supplied with policarbon glass at front (only if required)

Alphaview

standard size 200 x 580 mm
additional size: 200/390 x 770 mm / fast lane: 320 x 960 mm
Connected to existing infrastructure over LAN (alternatively RS232) with dedicated IP address.
